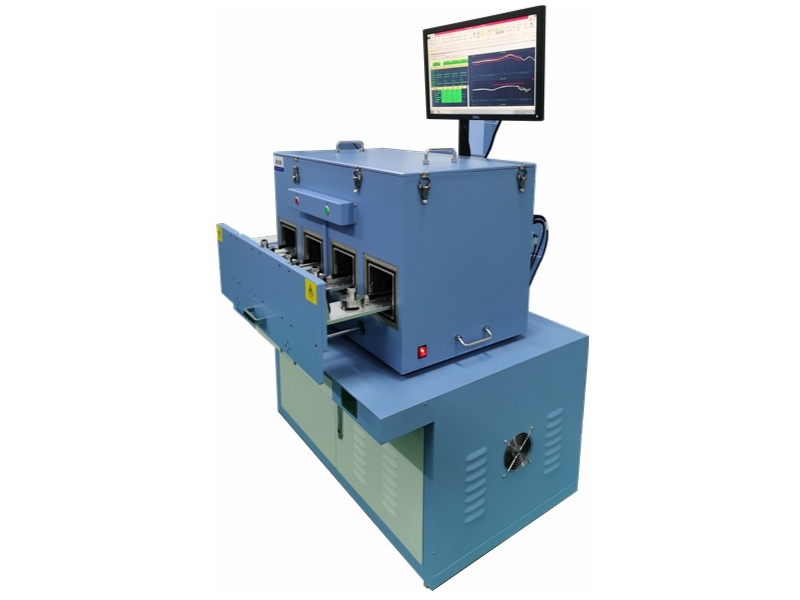

The one to four Bluetooth headphone audio testing system is a customized product based on the current headphone market demand. After long-term continuous optimization and comprehensive consideration of customer product characteristics, testing requirements, and manual operation habits, from hardware design to software platform, simple, efficient, and accurate testing results have been greatly achieved, with UPH reaching 480 hours per hour.

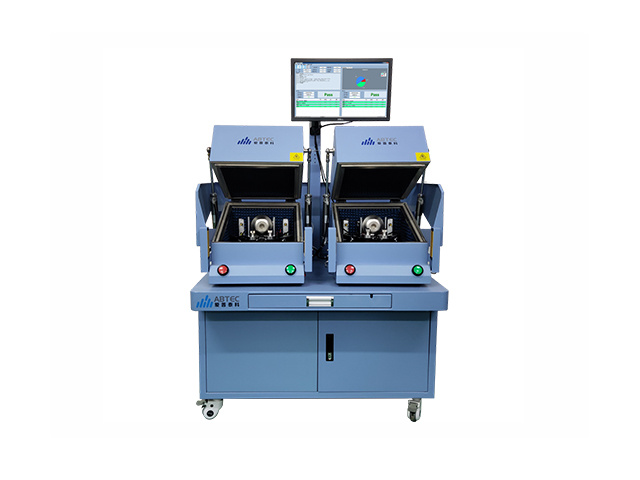

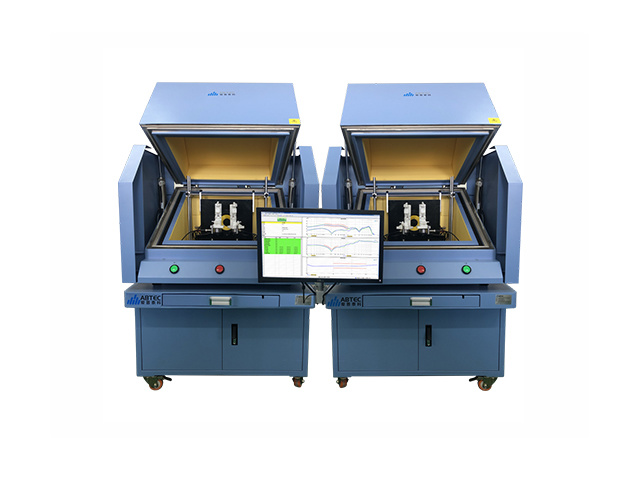

ABTEC ANC test system is a set of ANC test and headphone acoustic test system developed based on A2 audio analyzer. The system can manually or automatically test the passive noise reduction and Active noise control curve of headphones according to customer needs, support different noise reduction schemes such as FF, FB, Hybrid, automatically adjust the gain of the object to be tested to achieve the target noise reduction effect, and automatically burn the gain data. The testing system has good stability and fast speed, which can effectively solve the problem of noise reduction earphone testing in research and development or production lines. Simultaneously supporting noise reduction earphone filtering circuit curve testing, all related acoustic tests for ordinary Bluetooth earphones, TWS earphones, and wired earphones.
Application project 1 and 2 test time <10s, Application project 3 test time <20s; Add key frequency test data to facilitate process CPK and GR & R analysis; data export function, test data can be imported into customer production database; foolproof warning lights (bee (Buzzer) and product barcode scanning, employee ID number scanning; emergency stop switch device for safety

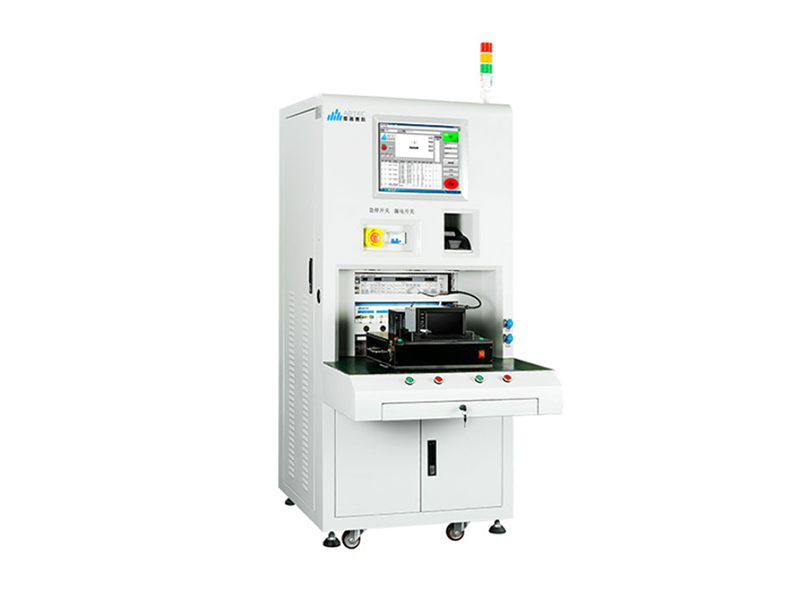

Vehicle multimedia automatic test system is a kind of automatic test solution established for high-precision test of various functional indexes of auto audio. Based on the long-term interests of customers, the scheme has flexible hardware platform and standardized general software platform, which makes the automatic test system of customers easy to expand, maintain and manage. At the same time, because its hardware platform is not limited by the equipment brand and model, it can quickly establish an automatic test system with the same accuracy, high stability and high efficiency as the existing equipment based on the existing equipment of customers.
