2 in 1 RF test system of Bluetooth headset

This test system is based on 8852B instrument development automation software, can achieve high efficiency product test
  • Features
  • Specification
  • Options and upgrades
  • Resource centre
    • Commodity name: 2 in 1 RF test system of Bluetooth headset
    • Commodity ID: ABT6802

    This test system is based on 8852B instrument development automation software, can achieve high efficiency product test

    This test system is based on 8852B instrument development automation software, can achieve high efficiency product test

    Main functions:

    1.Finished product test and semi-finished Bluetooth headset address writing, version information check, crystal frequency correction;

    2.Automatically generate test report

    3.Realize double station test, save the waiting time of product startup and loading and unloading time

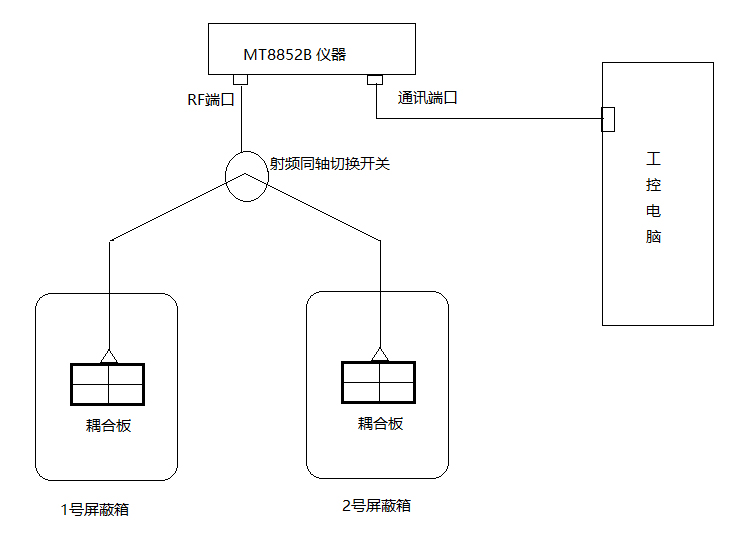

    System block diagram






    When performing the Bluetooth test, the comprehensive tester is regarded as the master device, and the Bluetooth device under test is a slave device. When performing the RF test, the device under test must enter the test mode.

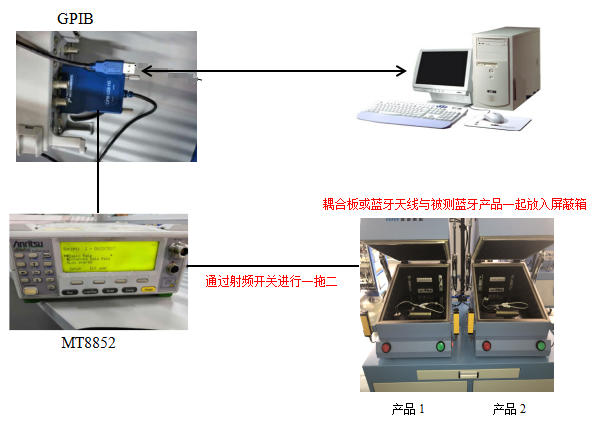

    Fourth, the physical connection diagram




    BR basic rate project (transmitter)

    Output Power

    Power Control

    Intial Carrier Frequency

    Carrier Frequency Drift

    Modulation Characteristic



    BR basic rate project (receiver)

    Single Slot Sensitivity

    Multi Slots Sensitivity

    Maximum Input Level



    EDR enhancement rate project (transmitter)

    Relative Transmit Power

    Carrier Frequency Stability & Modulation Accuracy

    Differential Phase Encoding



    EDR enhancement rate project (receiver)

    Sensitivity Test

    Floor Sensitivity

    Max Input Power

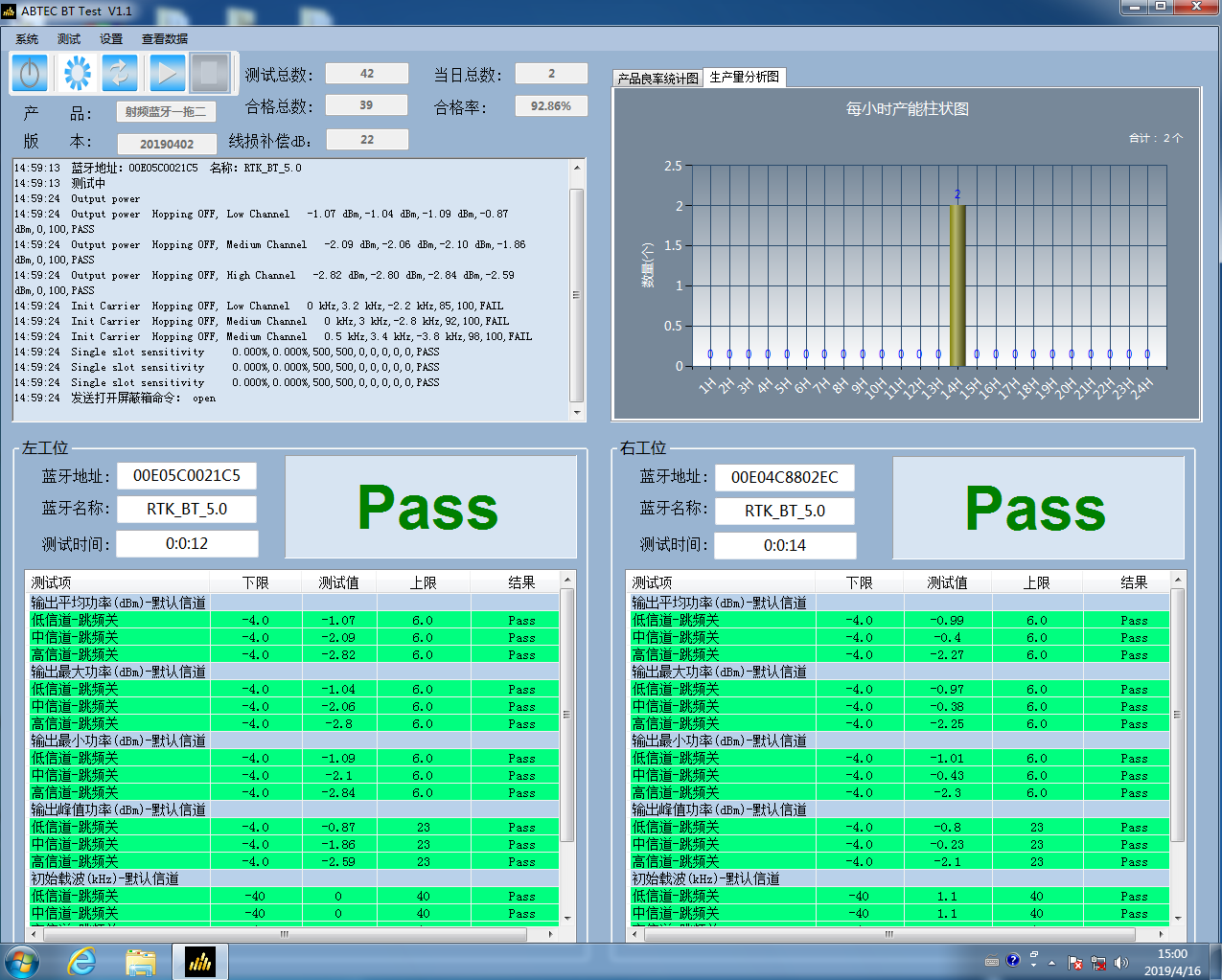

    Test software interface
